Rough Boring Tool

You Are Here : Rough Boring Tool

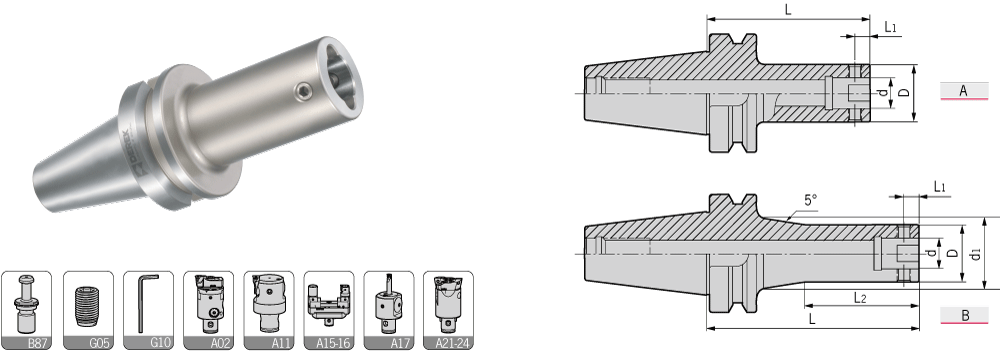

BT-DCK Boring Adapter

型號		圖示							側固螺釘	L型扳手	重量
Specifcation		Figure	D	d1	d	L1	L2	L	Side-lock screw	Wrench	Weight
BT30- BT40-	DCK1-55	A	19	-	11	5.05	-	55	M050Z050-30P-D	L025	0.42
	DCK1-70	A	19	-	11	5.05	-	70	M050Z050-30P-D	L025	0.47
	DCK2-80	A	24	-	14	6.62	-	80	M050Z050-30P-D	L025	0.55
	DCK3-80	A	31	-	18	8	-	80	M060Z090-30P-D	L03	0.66
	DCK4-70	A	39	-	22	10	-	70	M080Z120-30P-D	L04	0.72
	DCK5-70	A	50	-	28	13	-	70	M100Z160-30P-D	L05	0.89
	DCK6-60	A	64	-	36	16	-	60	M120Z200-30P-D	L06	0.88
	DCK1-70	A	19	-	11	5.05	-	70	M050Z050-30P-D	L025	1.06
	DCK1-100L	B	19	20.7	11	5.05	60	100	M050Z050-30P-D	L025	1.10
	DCK1-130L	B	19	25.5	11	5.05	60	130	M050Z050-30P-D	L025	1.25
	DCK2-75	A	24	-	14	6.62	-	75	M050Z060-30P-D	L025	1.10
	DCK2-100	A	24	-	14	6.62	-	100	M050Z060-30P-D	L025	1.19
	DCK2-130L	B	24	28.3	14	6.62	75	130	M050Z060-30P-D	L025	1.33
	DCK2-160L	B	24	33.6	14	6.62	75	160	M050Z060-30P-D	L025	1.49
	DCK3-80	A	31	-	18	8	-	80	M060Z090-30P-D	L03	1.22
	DCK3-100	A	31	-	18	8	-	100	M060Z090-30P-D	L03	1.34
	DCK3-135L	B	31	34.5	18	8	75	135	M060Z090-30P-D	L03	1.57
	DCK3-165L	B	31	39.7	18	8	85	160	M060Z090-30P-D	L03	1.81
	DCK4-70	A	39	-	22	10	-	70	M080Z120-30P-D	L04	1.24
	DCK4-100	A	39	-	22	10	-	100	M080Z120-30P-D	L04	1.50
	DCK4-150L	B	39	43.4	22	10	85	150	M080Z120-30P-D	L04	1.97
	DCK4-170L	B	39	46.9	22	10	95	170	M080Z120-30P-D	L04	2.18
	DCK5-60	A	50	-	28	13	-	60	M100Z160-30P-D	L05	1.26
	DCK5-80	A	50	-	28	13	-	80	M100Z160-30P-D	L05	1.54
	DCK5-100	A	50	-	28	13	-	100	M100Z160-30P-D	L05	1.82
	DCK5-150	A	50	-	28	13	-	150	M100Z160-30P-D	L05	2.53
	DCK5-180	A	50	-	28	13	-	180	M100Z160-30P-D	L05	2.96
	DCK6-55	A	64	-	36	16	-	55	M120Z200-30P-D	L06	1.25
	DCK6-100	A	64	-	36	16	-	100	M120Z200-30P-D	L06	2.33
	DCK6-150	A	64	-	36	16	-	150	M120Z200-30P-D	L06	3.52
	DCK6-180	A	64	-	36	16	-	180	M120Z200-30P-D	L06	4.25

型號		圖示							側固螺釘	L型扳手	重量
Specifcation		Figure	D	d1	d	L1	L2	L	Side-lock screw	Wrench	Weight
BT50-	DCK1-80	A	19	-	11	5.05	-	80	M050Z050-30P-D	L025	3.63
	DCK1-115L	B	19	20.7	11	5.05	50	115	M050Z050-30P-D	L025	3.81
	DCK1-150L	B	19	26	11	5.05	60	145	M050Z050-30P-D	L025	3.91
	DCK2-80	A	24	-	14	6.62	-	80	M050Z060-30P-D	L025	3.66
	DCK2-105	A	24	-	14	6.62	-	105	M050Z060-30P-D	L025	3.74
	DCK2-135L	B	24	26.6	14	6.62	65	135	M050Z060-30P-D	L025	3.96
	DCK2-165L	B	24	31.9	14	6.62	75	165	M050Z060-30P-D	L025	4.12
	DCK3-85	A	31	-	18	8	-	85	M060Z090-30P-D	L03	3.77
	DCK3-110	A	31	-	18	8	-	110	M060Z090-30P-D	L03	4.00
	DCK3-140L	B	31	32.7	18	8	75	140	M060Z090-30P-D	L03	4.19
	DCK3-170L	B	31	38	18	8	85	170	M060Z090-30P-D	L03	4.42
	DCK4-100	A	39	-	22	10	-	100	M080Z120-30P-D	L04	4.00
	DCK4-160L	B	39	42.5	22	10	85	160	M080Z120-30P-D	L04	4.62
	DCK4-205L	B	39	50	22	10	95	205	M080Z120-30P-D	L04	5.18
	DCK5-90	A	50	-	28	13	-	90	M100Z160-30P-D	L05	4.18
	DCK5-165	A	50	-	28	13	-	165	M100Z160-30P-D	L05	5.24
	DCK5-210L	B	50	57.8	28	13	120	210	M100Z160-30P-D	L05	6.00
	DCK5-270L	B	50	68.4	28	13	120	270	M100Z160-30P-D	L05	7.50
	DCK6-85	A	64	-	36	16	-	85	M120Z200-30P-D	L06	4.39
	DCK6-155	A	64	-	36	16	-	155	M120Z200-30P-D	L06	6.00
	DCK6-215	A	64	-	36	16	-	215	M120Z200-30P-D	L06	7.50
	DCK6-250	A	64	-	36	16	-	250	M120Z200-30P-D	L06	8.35
	DCK6-300L	B	64	80.5	36	16	160	300	M120Z200-30P-D	L06	10.34
	DCK6-350L	B	64	90	36	16	160	350	M120Z200-30P-D	L06	12.57
	DCK7-85	A	90	-	46	19.15	-	85	M200Z290-30P-D	L10	4.96
	DCK7-150	A	90	-	46	19.15	-	150	M200Z290-30P-D	L10	8.00
	DCK7-210	A	90	-	46	19.15	-	210	M200Z290-30P-D	L10	10.87
	DCK7-250	A	90	-	46	19.15	-	250	M200Z290-30P-D	L10	12.80
	DCK7-300	A	90	-	46	19.15	-	300	M200Z290-30P-D	L10	15.00
	DCK7-350	A	90	-	46	19.15	-	350	M200Z290-30P-D	L10	17.50


特點/ Feature
■整支通孔，利于出水及抗振。■可共用并互容于大多數的“CK”系列。
■側固螺絲與鍵槽成90度，確保切削機的退刀相位。
■側固螺絲鎖固時，請使用防卡油，以免鏜孔時因扭力過大，導致螺絲卡死難以拆裝。
■The whole bar with through holes,be useful for coolant and anti-shanking. ■Be compatible for all＂CK＂series.
■Side lock screw is at right angles to key slot, to make sure that the replacing holders in CNC machine are always in phase.
■Please apply lubricating oil to the screw to avoid stuck.
