Rough Boring Tool

You Are Here : Rough Boring Tool

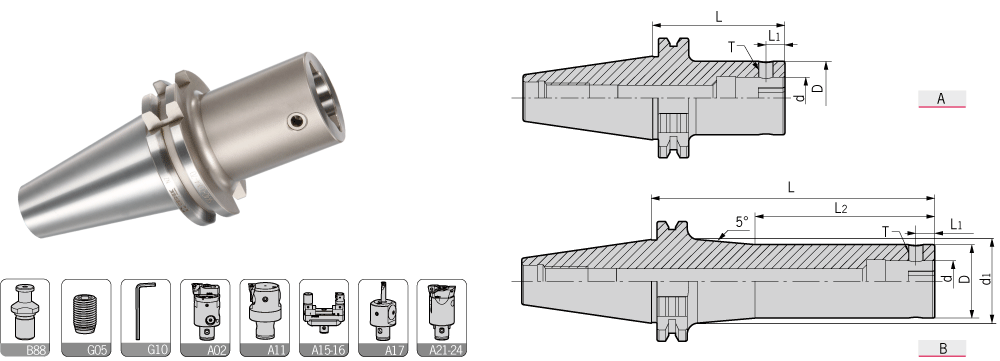

SK-DCK Boring Adapter

型號		圖示							側固螺釘	L型扳手	重量
Specifcation		Figure	D	d1	d	L1	L2	L	Side-lock screw	Wrench	Weight
SK30- SK40-	DCK1-55	A	19	-	11	5.05	-	55	M050Z050-30P-D	L025	0.42
	DCK1-70	A	24	-	11	5.05	-	70	M050Z050-30P-D	L025	0.45
	DCK2-80	A	24	-	14	6.62	-	80	M050Z060-30P-D	L025	0.54
	DCK3-80	A	31	-	18	8	-	80	M060Z090-30P-D	L03	0.66
	DCK4-70	A	39	-	22	10	-	70	M080Z120-30P-D	L04	0.70
	DCK5-70	A	50	-	28	13	-	70	M100Z160-30P-D	L05	0.85
	DCK6-80	A	64	-	36	16	-	60	M120Z200-30P-D	L06	1.24
	DCK1-70	A	19	-	11	5.05	-	70	M050Z050-30P-D	L025	0.89
	DCK1-100L	B	19	20.7	11	5.05	60	100	M050Z050-30P-D	L025	0.99
	DCK2-75	A	24	-	14	6.62	-	75	M050Z060-30P-D	L025	0.97
	DCK2-100	A	24	-	14	6.62	-	100	M050Z060-30P-D	L025	1.06
	DCK2-130L	B	24	28.3	14	6.62	75	130	M050Z060-30P-D	L025	1.21
	DCK2-160L	B	24	33.6	14	6.62	75	160	M050Z060-30P-D	L025	1.38
	DCK3-80	A	31	-	18	8	-	80	M060Z090-30P-D	L03	1.11
	DCK3-100	A	31	-	18	8	-	100	M060Z090-30P-D	L03	1.22
	DCK3-135L	B	31	34.5	18	8	85	135	M060Z090-30P-D	L03	1.44
	DCK3-165L	B	31	39.7	18	8	85	165	M060Z090-30P-D	L03	1.73
	DCK4-70	A	39	-	22	10	-	70	M080Z120-30P-D	L04	1.14
	DCK4-100	A	39	-	22	10	-	100	M080Z120-30P-D	L04	1.41
	DCK4-150L	B	39	43.4	22	10	95	150	M080Z120-30P-D	L04	1.90
	DCK4-170L	B	39	46.9	22	10	95	170	M080Z120-30P-D	L04	2.13
	DCK5-80	A	50	-	28	13	-	80	M100Z160-30P-D	L05	1.49
	DCK5-100	A	50	-	28	13	-	100	M100Z160-30P-D	L05	1.75
	DCK5-150	A	50	-	28	13	-	150	M100Z160-30P-D	L05	2.48
	DCK5-180	A	50	-	28	13	-	180	M100Z160-30P-D	L05	2.92
	DCK6-90	A	64	-	36	16	-	90	M120Z200-30P-D	L06	1.98
	DCK6-150	A	64	-	36	16	-	150	M120Z200-30P-D	L06	3.40
	DCK6-180	A	64	-	36	16	-	180	M120Z200-30P-D	L06	4.10

型號		圖示							側固螺釘	L型扳手	重量
Specifcation		Figure	D	d1	d	L1	L2	L	Side-lock screw	Wrench	Weight
SK50-	DCK1-80	B	19	20.7	11	5.05	-	80	M050Z050-30P-D	L025	2.73
	DCK1-115L	B	19	20.7	11	5.05	60	115	M050Z050-30P-D	L025	2.84
	DCK1-145L	B	19	26	11	5.05	60	145	M050Z050-30P-D	L025	3.00
	DCK2-80	A	24	-	14	6.62	-	80	M050Z060-30P-D	L025	2.83
	DCK2-105	A	24	-	14	6.62	-	105	M050Z060-30P-D	L025	2.91
	DCK2-135L	B	24	26.6	14	6.62	75	135	M050Z060-30P-D	L025	3.00
	DCK2-165L	B	24	31.9	14	6.62	75	165	M050Z060-30P-D	L025	3.20
	DCK3-85	A	31	-	18	8	-	85	M060Z090-30P-D	L03	2.98
	DCK3-110	A	31	-	18	8	-	110	M060Z090-30P-D	L03	3.13
	DCK3-140L	B	31	32.7	18	8	85	140	M060Z090-30P-D	L03	3.30
	DCK3-170L	B	31	38	18	8	85	170	M060Z090-30P-D	L03	3.57
	DCK4-100	A	39	-	22	10	-	100	M080Z120-30P-D	L04	3.24
	DCK4-160L	B	39	42.5	22	10	95	160	M080Z120-30P-D	L04	3.90
	DCK4-205L	B	39	50	22	10	95	205	M080Z120-30P-D	L04	4.50
	DCK5-90	A	50	-	28	13	-	90	M100Z160-30P-D	L05	3.40
	DCK5-165	A	50	-	28	13	-	165	M100Z160-30P-D	L05	4.53
	CK5-210L	B	50	57.8	28	13	120	210	M100Z160-30P-D	L05	5.45
	CK5-270L	B	50	68.4	28	13	120	270	M100Z160-30P-D	L05	7.10
	DCK6-85	A	64	-	36	16	-	85	M120Z200-30P-D	L06	3.90
	DCK6-155	A	64	-	36	16	-	155	M120Z200-30P-D	L06	5.54
	DCK6-215	A	64	-	36	16	-	215	M120Z200-30P-D	L06	6.96
	DCK6-250	A	64	-	36	16	-	250	M120Z200-30P-D	L06	7.80
	DCK6-300L	B	64	80.5	36	16	160	300	M120Z200-30P-D	L06	9.60
	DCK7-85	A	90	-	46	19.15	-	85	M200Z290-30P-D	L10	4.73
	DCK7-150	A	90	-	46	19.15	-	150	M200Z290-30P-D	L10	7.80
	DCK7-210	A	90	-	46	19.15	-	210	M200Z290-30P-D	L10	10.63
	DCK7-250	A	90	-	46	19.15	-	250	M200Z290-30P-D	L10	12.53
	DCK7-300	A	90	-	46	19.15	-	300	M200Z290-30P-D	L10	14.89
	DCK7-350	A	90	-	46	19.15	-	350	M200Z290-30P-D	L10	17.32


特點/ Feature
■整支通孔，利于出水及抗振。■可共用并互容于大多數的“CK”系列。
■側固螺絲與鍵槽成90度，確保切削機的退刀相位。
■側固螺絲鎖固時，請使用防卡油，以免鏜孔時因扭力過大，導致螺絲卡死難以拆裝。
■The whole bar with through holes,be useful for coolant and anti-shanking. ■Be compatible for all＂CK＂series.
■Side lock screw is at right angles to key slot, to make sure that the replacing holders in CNC machine are always in phase.
■Please apply lubricating oil to the screw to avoid stuck.
