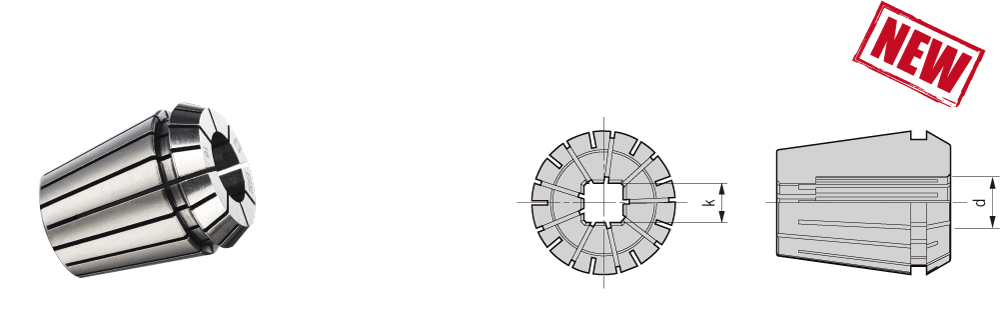

ER-G Tapping Collet

型號										備注通用Taps
Specification						d	k	ISO529(1)	ISO529(2)	JIS	DIN371	DIN376
ER16-					0224018G	2.24	1.8	-	M3	-	-	-
ER16-					028021G	2.8	2.1	-	-	-	-	M4
ER16-					0315025G	3.15	2.5	M3	M4	-	M3	M4.5、M5
ER16-					035027G	3.5	2.7	-	-	-	T04-L	1.35
ER16-	ER20-				040032G	4	3.2	M4	M5	M3、W1/8	-	-
ER16-	ER20-	ER25-			045034G	4.5	3.4	-	-	-	M4	M6
ER16-	ER20-	ER25-			0450355G	4.5	3.55	-	M6	-	-	-
ER16-	ER20-	ER25-			050040G	5	4	M5	-	M4	-	-
ER16-	ER20-	ER25-			055045G	5.5	4.5	-	-	M5、W3/16	-	-
ER16-	ER20-	ER25-			060045G	6	4.5	-	-	M6、W1/4	-	-
ER16-	ER20-	ER25-			060049G	6	4.9	-	-	-	M4.5、M5、M6	M8
ER16-	ER20-	ER25-			061050G	6.1	5	-	-	W5/16	-	-
ER16-	ER20-	ER25-			062050G	6.2	5	-	-	M8	-	-
ER16-	ER20-	ER25-			063050G	6.3	5	M6	M8	-	-	-
ER16-	ER20-	ER25-	ER32-		070055G	7	5.5	-	-	M10、W3/8	M7	M9、10
ER16-	ER20-	ER25-	ER32-		080060G	8	6	-	-	W7/16、PT1/8	-	-
ER16-	ER20-	ER25-	ER32-		080062G	8	6.2	-	-	-	M8	M11
ER16-	ER20-	ER25-	ER32-		080063G	8	6.3	M8	M10	-	-	-
ER16-	ER20-	ER25-	ER32-		085065G	8.5	6.5	-	-	M12	-	-
ER16-	ER20-	ER25-	ER32-		090070G	9	7	-	-	W1/2	M9	M12
ER16-	ER20-	ER25-	ER32-		090071G	9	7.1	-	M12	-	-	-
ER16-	ER20-	ER25-	ER32-	ER40-	100080G	10	8	M10	-	-	M10	-
	ER20-	ER25-	ER32-	ER40-	105080G	10.5	8	-	-	M14	-	-
	ER20-	ER25-	ER32-	ER40-	110090G	11	9	-	-	PT1/4	-	M14
	ER20-	ER25-	ER32-	ER40-	112090G	11.2	9	-	M14	-	-	-
	ER20-	ER25-	ER32-	ER40-	120090G	12	9	-	-	W5/8	-	M16
	ER20-	ER25-	ER32-	ER40-	125100G	12.5	10	-	M16	M16	-	-
		ER25-	ER32-	ER40-	140110G	14	11	-	-	M18、W3/4、PT3/8	-	M18
		ER25-	ER32-	ER40-	140112G	14	11.2	-	M18、M20	M18	-	-
		ER25-	ER32-	ER40-	150120G	15	12	-	-	M20	-	-
			ER32-	ER40-	160120G	16	12	-	-	-	-	M20
			ER32-	ER40-	160125G	16	12.5	-	M22	-	-	-
			ER32-	ER40-	170130G	17	13	-	-	M22、W7/8	-	-
			ER32-	ER40-	180140G	18	14	-	M24	PT1/2	-	-
			ER32-	ER40-	180145G	18	14.5	-	-	-	-	M22、M24
			ER32-	ER40-	190150G	19	15	-	-	M24	-	-
				ER40-	200150G	20	15	-	-	M27、W1、PT5/8	-	-
				ER40-	200160G	20	16	-	M27、M30	-	-	M27
				ER40-	220180G	22	18	-	-	-	-	M30
				ER40-	220190G	22	19	-	-	M30、M33	-	-
				ER40-	224180G	22.4	18	-	M33	-	-	-
				ER40-	130170G	23	17	-	-	M30、PT3/4	-	-
				ER40-	250190G	25	19	-	-	M33	-	-

注：選型前需確認(rèn)絲錐柄徑與四方尺寸。
Note: The size of the shank must to be suitable with the collet.


■常規(guī)備庫精度≤0.015mm
■In stock with accuracy ≤ 0.015mm
